The LS-ZT (Load Signature) Series is one of the most advanced and complete production monitors on the market today.

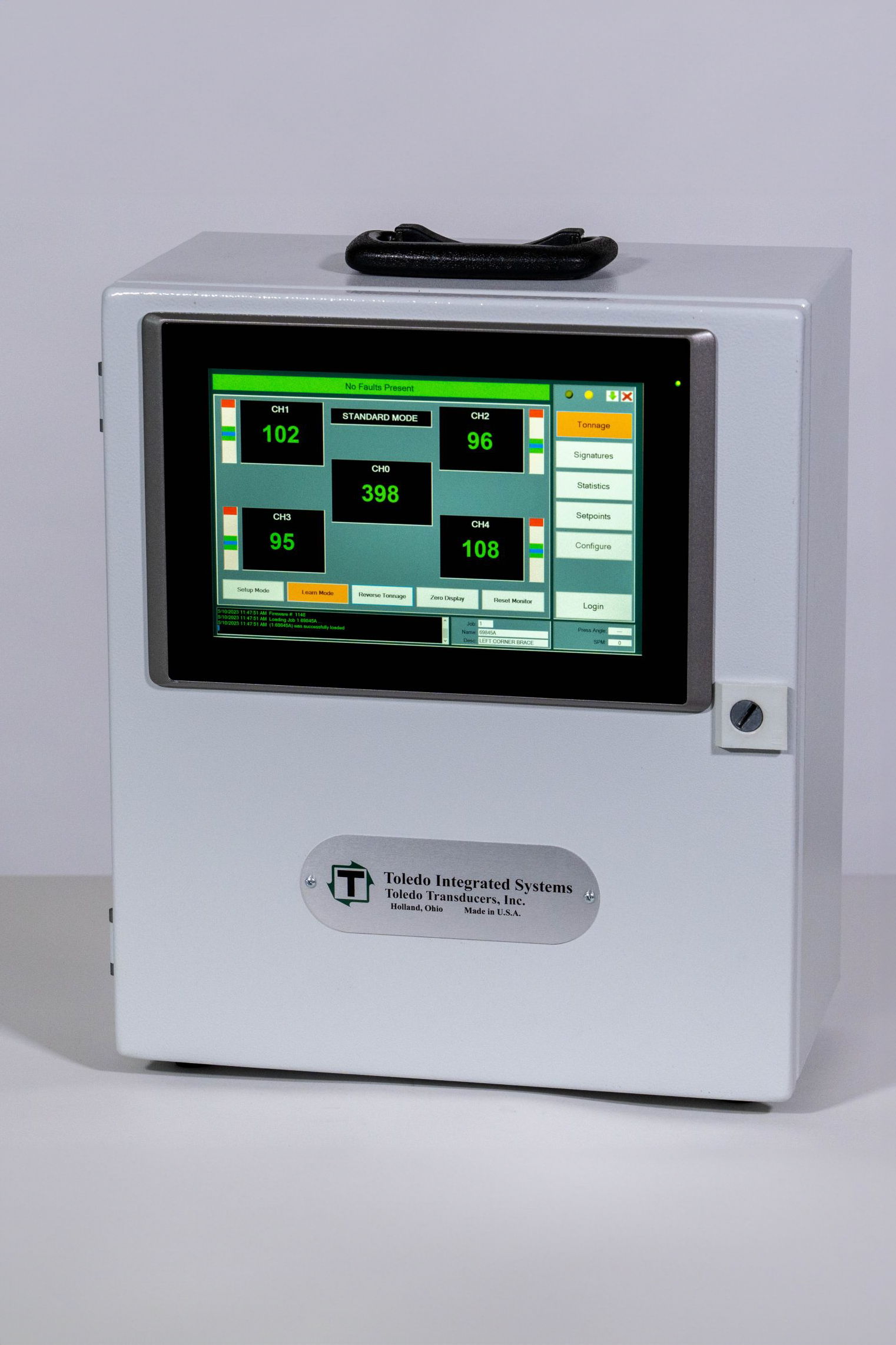

The LS-ZT Series provides tonnage and signature features that help ensure press, die and part protection. The operator interface is a computer screen that provides color signatures to be displayed right at the press.
Enveloping and Critical Curve monitoring (CCM) are part of the standard signature software. We also provide a solution if you are interested in combining die protection and programmable limit switches (PLS) with your LS Series tonnage monitor.
| Standard | Option | |
| Two or four channel display, plus total | ✓ | |
| Six or eight channel display, plus total | ✓ | |
| Independent left/right, high/low limits | ✓ | |
| Signatures for each press corner & total | ✓ | |
| Critical Curve monitoring (CCM) | ✓ | |
| Signature enveloping | ✓ | |
| Five signature zones for enveloping | ✓ | |
| Percent of benchmark setpoints | ✓ | |
| Percent of capacity setpoints | ✓ | |
| Shows reverse load or snap-through | ✓ | |
| Stroke, part, good part & batch counters |
✓ | |
| Can view count left in batch | ✓ | |
| Low alarms may be disabled | ✓ | |
| Automatic Zero Balance | ✓ | |
| Shows die/job summary information | ✓ | |
| Target tonnage die storage, up to 200 jobs |
✓ | |
| Three password levels | ✓ | |
| Shows strokes per minute | ✓ | |
| Can bypass an individual corner | ✓ | |
| Flash card for memory & data transfer | ✓ | |
| Two or four sensor inputs | ✓ | |
| Analog output jacks | ✓ | |
| RS-485/232 serial port | ✓ | |
| Auto-Learn | ✓ | |
| Door Lock | ✓ | |
| Counterbalance control | ✓ | |
| Shut-height indicator | ✓ |
| No. Of Channels | Two, Four or Eight |
| Sensor Inputs | Full bridge strain gauge sensors 120 to 1000 ohms Up to (8) 350 ohm sensors |
| Sensor Excitation | Built-in 10VDC @ 500mA max (Short circuit protected) |
| Balance Range | +/- 1mV/V of offset |
| Gain Range | 100 to 11,000x (digitally controlled) |
| Analog Output | 1.25VDC at 2.5VDC Press Capacity |
| Accuracy | +/- 1% of full scale max |
| Non-linearity | +/- .1% of full scale max |
| Frequency Response |
Flat DC to 1KHz |
| Display | 4 digit display |
| Resolution | 1024 count |
| SPM | 400 SPM resolver |
| Computer Interface |
(3)RS-485/232 |
| Trigger | Resolver |
| Threshold Probe | N/A |
| Resolver Interface | Yes, 5000Hz rotor resolver |
| Shutdown Relay | 10A @ 250VAC & 30VDC N.O. and N.C. Contacts |
| Power Req. | 70 Watts max, 85-132VAC @ 50-60Hz OR 170-264VAC @ 50-60Hz |
| Width | Height | Depth | |
| Dimensions | 12.5 " | 14.5 " | 6.8 " |
| Name | Format | Link |
| User Manual |  |
| Type | Name | Description | Link |
| Standard Product | PM Kit | PM Kit includes strain gauge sensors, cables and mounting hardware |
 |
| Standard Product | Resolver | Precise crank-angle position measurements |
|
| Standard Product | PressNet | Networking software that provides detailed production and tonnage information |
|
| Standard Product | TT-Graph | Signature analysis program that generates tonnage signatures and provides a simple approach for analyzing the signatures |
|
| Service | Installation | On-site product installation | |
